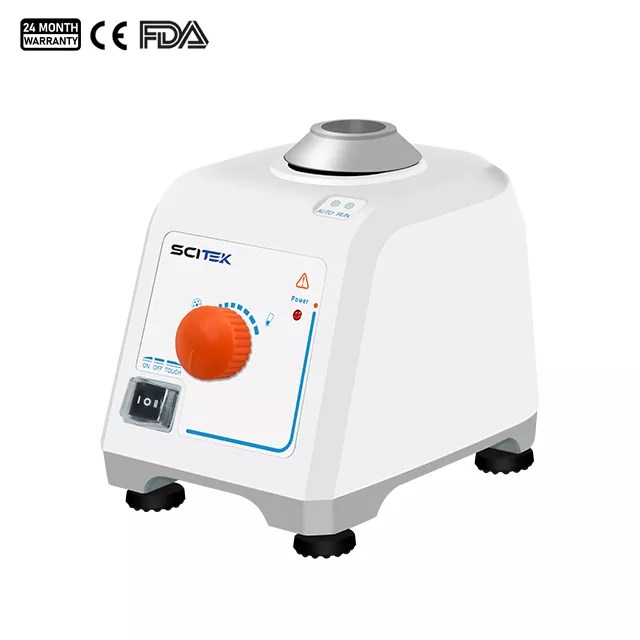

Vortex Mixer VMX-5

Model : VMX-5 Oscillation mode : Circular oscillation Rotating diameter : 4mm Motor type : DC Motor Speed range : 0~3000rpm

Category:

Tips: Dear customer, if you have any questions or want to know about our products, you can click the “I want to ask” button to fill in your questions.
Unsuccessful submission? Please contact info@tech2art.com





Scientific Studies



Documents



Vortex Mixer Feature:



  1. Designed with a wide voltage range of 100-240V, it has a wide range of applications;
  2. Operation mode: Two modes to choose from: light sensing/continuous;
  3. Permanent magnet DC motors are not prone to heating, have a long lifespan, and can operate for extended periods of time;
  4. Soft silicone foot pads, super shock resistant, and the body is stable and does not move when working at high speeds;
  5. The die-cast zinc base is strong and durable, so that it has enough counterweight weight and eccentricity to balance the operation;
  6. Multiple specifications of adapters are available to meet different experimental needs.

Vortex Mixer Specifications:

Model VMX-5
Voltage 100~240V/2.5A, 50~60
Input power 60w
Oscillation mode Circular oscillation
Operation mode Jogging (light sensing)/continuous
Rotating diameter 4mm
Motor type DC Motor
Speed range 0~3000rpm
Speed control mode Knob
Motor power 15.7w
Allowable ambient temperature 5~40℃
Allowable relative humidity 80%RH
Size (W×D×H)(mm) 165x130x140
Shipping size (W×D×H)(mm) 250x220x190
N.W./G.W. (kg) 3.0/3.5
