Magnetic Stirrer, 1 Stirring Position

Magnetic Stirrer, 1 Stirring Position

Model : MS-A; MS-B Work Plate Size : φ 135mm (5 inch) Motor Type : Brushless DC motor Max. Stirring Quantity (H2O) : 3L Speed Range : 0-1500rpm

Size(W×D×H)(m

Category:

Tips: Dear customer, if you have any questions or want to know about our products, you can click the “I want to ask” button to fill in your questions.
Unsuccessful submission? Please contact info@tech2art.com





Scientific Studies



Documents



Magnetic Stirrer Specifications:

Model MS-A MS-B
Work Plate Size φ 135mm (5 inch) φ 135mm (5 inch)
Work Plate Material Nylon+GF Nylon+GF
Motor Type Brushless DC motor Brushless DC motor
Stirring Positions 1 1
Max. Stirring Quantity (H2O) 3L 3L
Max. Magnetic Bar (Length) 50mm 50mm
Speed Range 0-1500rpm 0-1500rpm
Speed Display LED Scale
Protection Class IP42 IP42
Motor Input Power 5W 5W
Motor Output Power 3W 3W
Power 15W 10W
Power Supply 100-120/200-240V, 50/60Hz
Permissible Ambient
Temperature and Humidity		 10-40℃, 80%RH 10-40℃, 80%RH
Size(W×D×H)(mm) 260×150×80 260×150×80
Shipping Size (W×D×H)(mm) 300×240×220 300×240×220
N.W./G.W. (kg) 1.8/3 1.8/3



Magnetic Stirrer Features:

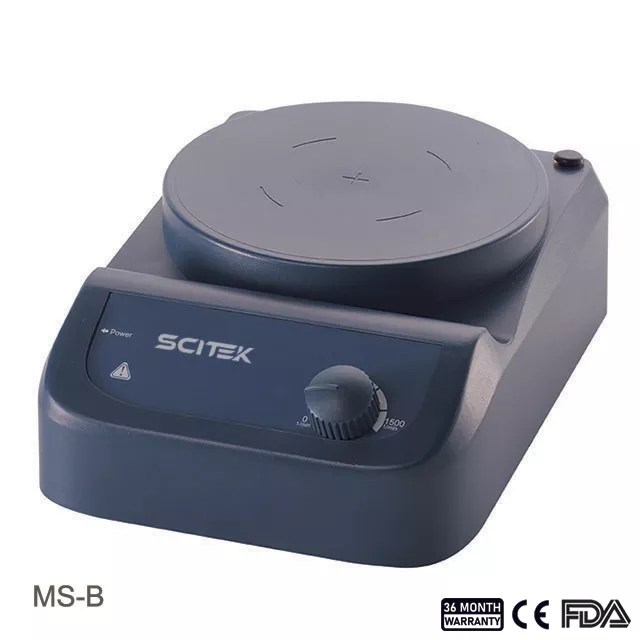

MS-B

Max speed is 1500rpm.

Stirring quantity of H2O at 3L.

Nylon + GF shell provides good chemical resistance.

MS-A

Digital control, LED display

Max speed is 1500rpm.

Stirring quantity of H2O at 3L.

Nylon + GF shell provides good chemical resistance.
