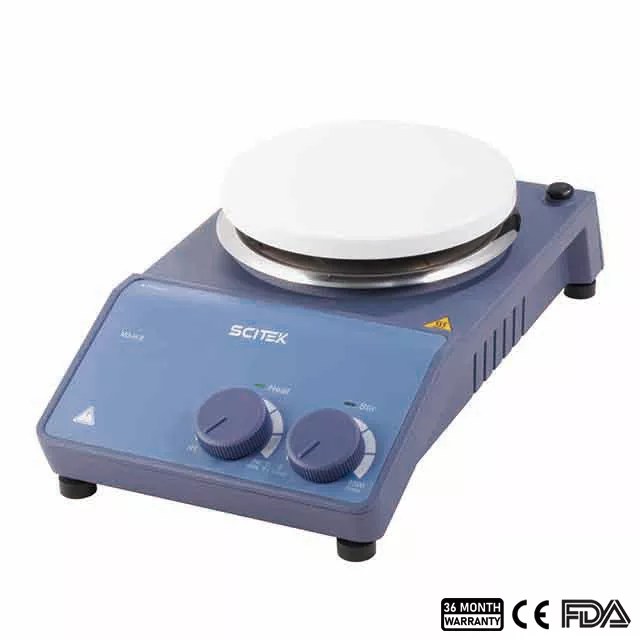

Hotplate Magnetic Stirrer, 340°C

Hotplate Magnetic Stirrer, 340°C

Model : HMS-S Work Plate Size : φ135mm (5 inch) Stirring Positions : 1 Max. Stirring Quantity (H2O) : 20L Speed Range : 0-1500rpm, resolution ±1rpm Heating Tempera

Category:

Tips: Dear customer, if you have any questions or want to know about our products, you can click the “I want to ask” button to fill in your questions.
Unsuccessful submission? Please contact info@tech2art.com





Scientific Studies



Documents



Hotplate Magnetic Stirrer Specifications:

Model HMS-S
Work Plate Size φ135mm (5 inch)
Work Plate Material Stainless steel cover with ceramic
Motor Type Brushless DC motor
Stirring Positions 1
Max. Stirring Quantity (H2O) 20L
Max. Magnetic Bar (Length) 80mm
Speed Range 0-1500rpm
Resolution ±1rpm
Speed Display Scale
Temperature Display Scale
Heating Temperature Range Room temp.-340°C
Temperature Control Accuracy –
Over Temperature Protection 420°C
Temperature Display Accuracy ±0.5°C
External Temperature Sensor –
Hot Warning –
Timer Function –
Data Connector –
Protection Class IP42
Motor Rating Input 18W
Motor Rating Output 10W
Power 530W
Heating Output 500W
Permissible Ambient
Temperature and Humidity		 5-40°C, 80%RH
Power Supply 100-120/200-240V, 50/60Hz
Size(W×D×H)(mm) 160×280×85
Shipping Size(W×D×H)(mm) 470×250×240
N.W./G.W. (kg) 2.8/3.5



Hotplate Magnetic Stirrer Features:

  1. Maintenance free brushless DC motor.
  2. Max. temperature to 340°C.
  3. Stirring speed up to 1500 rpm.
  4. Overheating protection.
