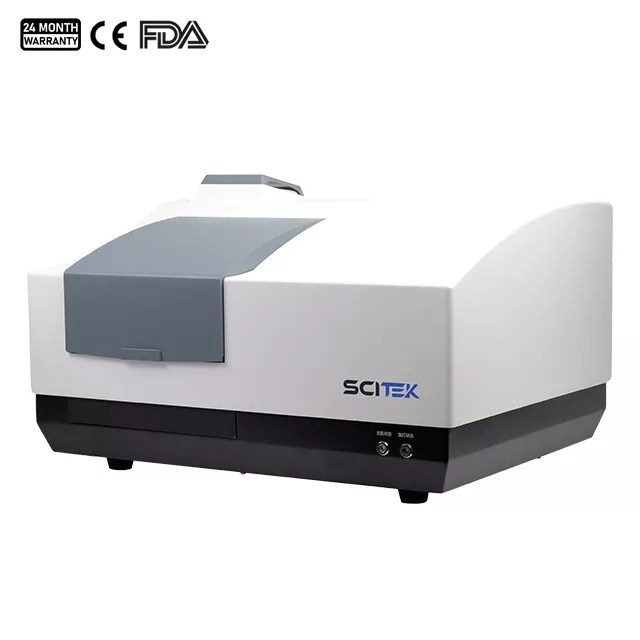

Fluorescence Spectrophotometer

Fluorescence Spectrophotometer

Model : SP-FL98 Emission Wavelength : 200-900nm

Wavelength Repeatability : ≤0.2nm Wavelength Accuracy : ±0.4nm Size(W×D×H)(mm) : 610×460×365
Benchtop f

Category:

Tips: Dear customer, if you have any questions or want to know about our products, you can click the “I want to ask” button to fill in your questions.
Unsuccessful submission? Please contact info@tech2art.com





Scientific Studies



Documents



Fluorescence Spectrophotometer Specifications:

Model SP-FL98
Excitation Source 150W xenon lamp (Hamamatsu)
Excitation Wavelength 200nm-900nm
Emission Wavelength 200nm-900nm
Excitation Slit 1nm/2nm/5nm/10nm/20nm
Emission Slit 1nm/2nm/5nm/10nm/20nm
Wavelength Accuracy ±0.4nm
Wavelength Repeatability ≤0.2nm
Signal-to-Noise Ratio S/N≥350(P-P), S/N≥1000(RMS)
Limit ≤5×10-11 g/ml (Quinine Sulfate Solution)
Linearity γ≥0.995
Peak Repeatability ≤1.5%
Wavelength Scan Speed Multi-speed Level, Maximum at 60000nm/min
Minimum Sample Size 0.5mL (Using a standard 10mm square sample cell)
Octave Filter Build in Octave filter
Photometric Quantity Range -9999-9999
Response Time 0.02/0.1/0.5/1/2/4/8s, Auto adjust
Data Transportation USB 2.0
Power 200W
Power Source AC 220V/50Hz; 110V/60Hz
Size(W×D×H)(mm) 610×460×365
Shipping Size(W×D×H)(mm) 790x670x530
N.W./G.W. (kg) 21/47



Fluorescence Spectrophotometer Features:





SP-LF98 fluorescence spectrophotometer is designed for high-performance experiments or testing.

Horizontal slit optical design with excellent luminescence detection efficiency and high signal-to-noise ratio.

1. Bandwidth 1/2/5/10/20nm adjustable

2. Fluorescence quantum yield accessory available

3. Wavelength scanning speed up to 60000 nm/min

4. The software provides a synchronized scanning function

5. Built-in frequency filter provides sufficient light intensity signal

6. Photomultiplier detector ensures detection sensitivity
