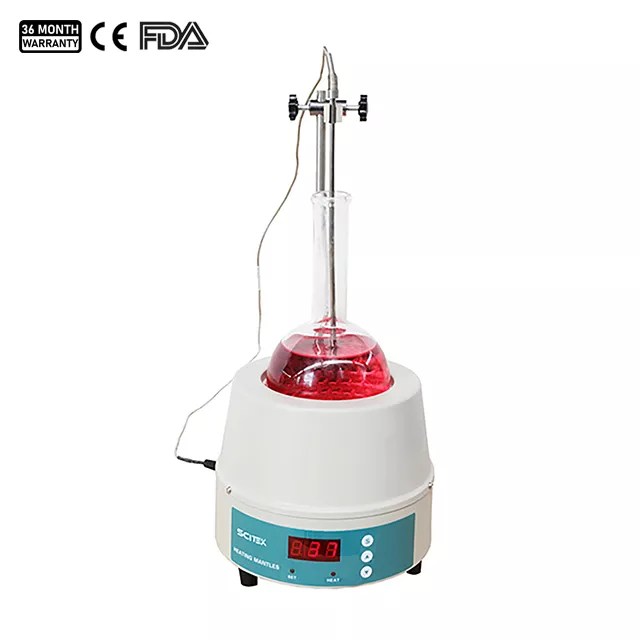

Digital Display Heating Mantle, 450℃

Digital Display Heating Mantle, 450℃

Model : MHD-III Capacity(ml) : 50 / 100 / 250 / 500 / 1000 / 2000 / 3000 / 5000 / 10000 / 20000 Heating Mode : Surface heat-conduction Surface Max.Temp.( ℃) : 450℃ Temperatu

Category:

Tips: Dear customer, if you have any questions or want to know about our products, you can click the “I want to ask” button to fill in your questions.
Unsuccessful submission? Please contact info@tech2art.com





Scientific Studies



Documents



Heating Mantle Specifications:

Model MHD-III
Function Capacity(ml) 50 100 250 500 1000 2000 3000 5000 10000 20000
Heating Mode Surface heat-conduction
Surface Max.
Temp.( ℃)		 450℃
Temperature
Control Range		 RT+20～250℃
Structure Heating Element Nichrome wire
Shell
(Insulation Layer)		 High quality aluminum silicate cotton
Heating Power (kW) 0.08 0.1 0.15 0.25 0.35 0.45 0.6 0.8 1.2 2.5
Controller Working Mode Continuous
Specification Power Supply 100～120V or 200～240V, 50/60Hz 200～240V, 50/60Hz
Sizes(W×D×H)(mm) ϕ220×165 ϕ280×220 ϕ330×230 ϕ340×245 ϕ350×250 ϕ425×320 ϕ470×340
Shipping Size
(W×D×H)(mm)		 230×230×195 290×290

×300

 340×340

×350

 360×360

×300

 390×390

×310

 430×430

×350

 510×510

×380
N.W./G.W. (kg) 2.5/3 5.5/6 6.5/7 7.5/8 8/9.5 9.8/12 16/20
