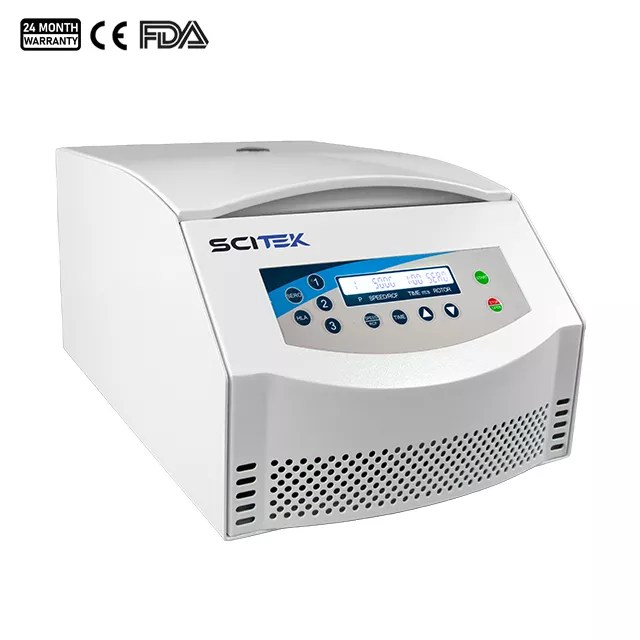

The cell washer/serofuge centrifuge is a special centrifuge for washing red and white blood cells.

Cell Washer/Serofuge Centrifuge Specifications:

Model	CFG-4CW
Max Speed	4000r/min
Max RCF	2000×g
Max Capacity	12×7ml
Speed Accuracy	±10r/min
Timer	1s～99min59s
Noise	≤55dBA
Power Supply	AC110/220V, 50/60Hz
External Size (W×D×H)(mm)	470×320×250
Shipping Size (W×D×H)(mm)	565×410×340
N.W/G.W	16kg/18kg

Rotors for CFG-4CW:

Rotor Name	RCF	Use
HAL Rotor for Lymphocyte Washning	2000×g	Lymphocyte separation incubated cell separation
	1000×g	Hematoblast extenterate(thrombin disposal)
	1000×g	Lymphocyte washing
SERO Rotor for Erythrocyte Washing	500×g	Blood type determination, the image of the hematocyte
	1000×g	Hematocyte washing, the distillation of the
	1000×g	Hematocyte washing, the distillation of the serum and plasma

Cell Washer/Serofuge Centrifuge Feature:

All-steel structure with multi-layer explosion-proof design, safe and stable operation performance.
Self-test, alarm protection function, close the door, you can close the cavity door, over-speed, imbalance protection, safe, reliable, convenient and fast.
Adopt microcomputer processor for precise control, LCD display parameters such as speed, time, key programming, switch display operation parameters and RCF value.
It adopts high torque non-carbon brush DC motor, which is easy to operate; maintenance-free, dust-free and fast lifting speed.
Built-in special program for washing red and white blood cells, with dedicated selection buttons.
Small size and low cover height, saving laboratory space.
Door lock, overspeed and imbalance automatic protection，Self-diagnostic error.

Details of Cell Washer/Serofuge Centrifuge:

High-precision tube racks and adjustable centrifugal rotors enable the adjustment of rotor speed and centrifugal force according to different sample requirements.

In addition to routine serum separation, this Serofuge Centrifuge is equipped with a cell washing function that effectively cleans impurities from the cell surface and removes non-target cells or substances, ensuring the purity and accuracy of experimental samples.

CFG-4CW (7)

The outer package is made of sturdy material to protect the equipment and ensure safety during transportation. Detailed instruction manual and necessary accessories are included in the package to facilitate installation and operation.
