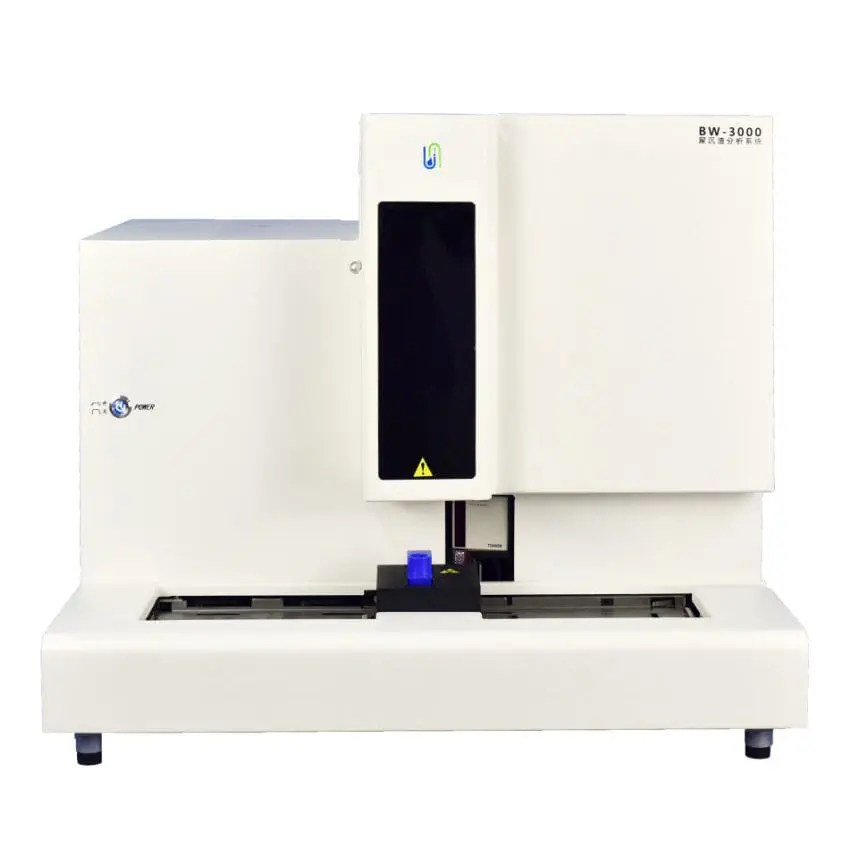

BW-3000 Urine Sediment Analyzer
9.360,00 €
2 Years Warranty!
BW-3000 is aย full automatic urine sediment analyzer . Samples are 3D located, tracked, scanned, identified and classified without centrifugation.
It is mainly used to conduct microscopic analysis in clinical units. It adopts SVM technology, applies machine vision and follows automatic morphological method
to operate full-auto microscopic analysis. It analyzes and segments the adopted image and it can recognizes urine formed element automatically and rapidly.
| Features: | 1.ย ย ย ย Samples are 3D located, tracked, scanned, identified, and classified without centrifugation.
2.ย ย ย ย Mainly used to conduct microscopic analysis in clinical units. 3.ย ย ย ย It adopts SVM technology. 4.ย ย ย ย Applies machine vision and follows automatic morphological method. 5.ย ย ย ย It analyzes and segments the adopted image. 6.ย ย ย ย Can recognizes urine formed element automatically and rapidly. |
| Measurement Principle: | Flow cell digital imaging technology, medical image fusion technology, artificial intelligence identification technique |
| Scope Of Application: | 17 simultaneously samples |
| Test Analytics: | Normal RBC, Standing RBC, Dysmorphic RBC, Normal WBC, WBCC, Pus Cell, Hyaline Cast, Granular Cast, WBC Cast, Squamous Epithelial Cell, Normal Epithelial Cell, Sperm, Calcium Crystal, Oxalate Crystal Bacteria, Yeast, Amorphous Urates, Mucus etc. |
1 in stock (can be backordered)
Add to cart
Buy Now
Tips: Dear customer, if you have any questions or want to know about our products, you can click the “I want to ask” button to fill in your questions.
Unsuccessful submission? Please contact info@tech2art.com
Scientific Studies
Documents
Product Introduction
BW-3000 is aย full automatic urine sediment analyzer . Samples are 3D located, tracked, scanned, identified and classified without centrifugation.
It is mainly used to conduct microscopic analysis in clinical units. It adopts SVM technology, applies machine vision and follows automatic morphological method
to operate full-auto microscopic analysis. It analyzes and segments the adopted image and it can recognizes urine formed element automatically and rapidly.
|
BW-3000 PRODUCT SPECIFICATIONS |
|
| Measurement Principle:ย | Flow cell digital imaging technology, medical image fusion technology, artificial intelligence identification technique. |
| Testย Analytes: | Normal RBC, Standing RBC, Dysmorphic RBC, Normal WBC, WBCC, Pus Cell, Hyaline Cast, Granular Cast, WBC Cast, Squamous Epithelial Cell, Normal Epithelial Cell, Sperm, Calcium Crystal, Oxalate Crystal Bacteria, Yeast, Amorphous Urates, Mucus etc. |
| Test Speed:ย | 120 samples/hour |
| Working Environment: | Temperature 15ยฐC~35ยฐC, Optimum temperature 20ยฐC~25ยฐC, Relative humidityโค75% |
| Power:ย | 300VA |
| Sample Volume: | Minimum volume: 3 ml, Aspiration volume: l ml |
| Sample Process: | The sample can be directly tested without centrifugation. |
| Sample Method: | Automatic trail injection, 10 samples on the machine at the same time. |
| Accuracy: | โฅย 95% |
| Flow Cell: | High accuracy, single channel flow cell (test channel) |
| Test Sensitivity: | 5 cells/ul |
| Aspiration Volume: | 1 ml |
| Channels: | 4 fixed channels in flow counting cell |
| Data Communication: | Two-way communication interface, can be connected withย dry chemistry analyzer, printer and hospital management system. |
| Repeatability Test:ย | CV < 10% |
| Contamination Rate: | <ย 0.05% |
| Reporting Method:ย | International general quantitative unit: unit /ul & HPF, complete and illustrated report, with urine chemistry test results and urine sediment test results. |
| Data Storage: | 200,000 |
| Troubleshooting:ย | Instrument self-detectionย with standardย calibration strip detection |
| Standard Configuration:ย | Computer, including screen, mouse, keyboard |
| ย Voltage: | AC 100~240V ยฑ 10%, 50-60Hz |
| ย Net Weight | 48 KG |
| ย Dimensions | 660mmx440mmx570mm๏ผL x W x H๏ผ |
* Device specification may change in accordance with the regional requirements
BW-3000 Full Automatic Urine Sediment Analyzer
The User Manual will be available for Download upon request.
